Part of embodied-gpt, my from-scratch series working through LLMs → Vision Transformers → Vision-Language Models → Robot Learning → Vision-Language-Action Models. This post covers Phase 1.

I already had a GPT built from scratch — tokenization, embeddings, attention, the residual stream, the training loop, all of it. So when I sat down to build a Vision Transformer, I expected the hard part to be new math. It wasn’t. The hard part was a much smaller, dumber- sounding question that I kept getting stuck on: what, exactly, is a token when the input is a picture instead of a sentence?

This post is the path I actually took through that question — including the points where I got confused, asked a dumb-feeling question, and had to back up and re-explain something to myself in plainer terms. If you’ve built a GPT and are eyeing a ViT next, I’d bet you hit the same snags.

The problem

In my GPT, a token is an integer ID, looked up in a table to get a vector. That machinery — attention, residual stream, MLPs — doesn’t care what the vectors mean, it just needs a sequence of them. So the real question for images isn’t “how does attention work on pixels,” it’s narrower: what is the “token” of an image, and how do you turn it into a vector?

The naive answer — one token per pixel — falls apart fast. A 32×32 CIFAR-10 image is already 1,024 pixels; a 224×224 image is ~50,000. Attention costs O(n²), so that’s 2.5 billion pairwise interactions per layer, per image, before you’ve even started. And a single pixel barely carries any meaning on its own — you’d be asking attention to first discover local structure that a cheap operation could hand it for free.

Historical context

CNNs solved image understanding for a decade using convolutions — small filters slid across the image, encoding an assumption baked directly into the architecture: nearby pixels are related, and that relationship shouldn’t have to be learned, it should be assumed. That assumption is called an inductive bias, and it’s why CNNs were so data-efficient early on.

ViT (Dosovitskiy et al., 2020 — “An Image is Worth 16x16 Words”) made a different bet: strip that assumption out, treat an image as a plain sequence, and let attention learn whatever spatial structure it needs from data instead of having it hard-coded. The title is the whole idea — a patch of a picture plays the same structural role a word plays in a sentence.

Intuition: patches as words

Here’s the pipeline, side by side with what I already knew:

TEXT (GPT)                              IMAGE (ViT)

"the cat sat"                            [picture]
      │                                       │
      ▼                                       ▼
["the","cat","sat"]  split into words    [patch1, patch2, ...]   split into squares
      │                                       │
      ▼                                       ▼
 [5, 812, 91]  look up each word's ID    [nums1, nums2, ...]     flatten each square
      │                                       │
      ▼                                       ▼
[vec1, vec2, vec3]   look up embedding   [vec1, vec2, ...]       run through a linear layer
      │                                       │
      ▼                                       ▼
   feed to transformer                    feed to transformer

Same shape of pipeline, one real difference: words come from a fixed dictionary, so you can look up their vector in a table. Patches don’t come from a dictionary — a patch is raw pixel values, different every time — so instead of looking up a vector, you compute one, with a linear layer. That linear layer is the direct analog of GPT’s embedding table: same job (turn a raw input unit into a vector), different mechanism because the input is continuous instead of discrete.

I’ll admit — the first pass I got at this intuition leaned hard on notation (x_p ∈ R^(N × P²C), E ∈ R^(P²C × D), etc.), and it didn’t stick. What actually made it click was dropping the symbols and just tracing concrete shapes through a concrete example, which is worth showing here because I think it’s a better way to hold the idea in your head than the equations:

Step Shape (CIFAR-10, 4×4 patches, embed dim 128) What happened
Input image (B, 3, 32, 32) raw pixels
Cut into patches (B, 64, 4, 4, 3) 64 squares, 8×8 grid
Flatten each patch (B, 64, 48) each square → one list of 48 numbers
Linear projection (B, 64, 128) 48 numbers → 128-dim embedding
Prepend [CLS] (B, 65, 128) one extra learned token glued on front
Add positional embedding (B, 65, 128) shape unchanged — adds “where am I” info
Through transformer blocks (B, 65, 128) shape never changes here — same as GPT’s (B, T, D)
Take [CLS] only (B, 128) throw away the other 64
Classification head (B, 10) one linear layer down to 10 classes

Two things jump out once you see it this way: the 64 → 65 bump happens exactly once, and after that the shape is frozen through every single transformer block — identical to how (B, T, D) never changes across a GPT’s blocks either. The only step that changes the amount of information per token is the 48 → 128 projection; everything else is rearranging or adding.

A doubt worth naming: encoder or decoder?

Given I’d only ever built a decoder (GPT), I had to explicitly ask myself: is this the same architecture with masking, or something structurally different?

It’s structurally different, and the reason is worth being precise about, because it’s not just terminology — it changes what the attention layer’s code looks like:

  • GPT (decoder-only): each token can only look at tokens before it. You mask the future because the task is “predict the next token,” and letting a token see its own answer would be cheating.
  • ViT (encoder-only): every token looks at every other token, no masking at all. There’s no “future” to hide — you’re not predicting patch 17 from patches 1–16, you’re letting all 65 tokens exchange information freely so the model can build one global read of the whole image, then reading the answer off [CLS].

Concretely: the ViT’s attention layer is the exact same Q/K/V math as a GPT’s attention layer, minus the causal mask. That’s the entire structural difference at the attention layer.

The part I actually got stuck on: [CLS]

Everything above came reasonably fast. The thing that genuinely didn’t click on the first, second, or even third explanation was the [CLS] token. It’s worth walking through the confusion honestly, because I don’t think I’m the only one who trips here.

My first pass at explaining it to myself was correct but useless: “it’s a learnable token prepended to the sequence whose final hidden state is used for classification.” True. Meant nothing to me. What actually worked was dropping to an analogy:

Imagine 64 people in a room, each of whom only looked at one small square of a photo and has an opinion about their square. You never saw the photo. You walk around, listen to all 64 of them, and form your own opinion by combining what they say. You are [CLS] — you start knowing nothing, and everything you end up “knowing” is entirely built from listening to the real tokens. At the end, your opinion — not any one person’s — is what gets reported as the answer.

Once that landed, two follow-up questions came out of it that were sharper than the original confusion:

“Doesn’t the position of [CLS] in the sequence not really matter?” — correct instinct, and worth being precise about why. Attention itself is permutation-agnostic; it only cares about content, not array order. Position only enters via the positional embedding you add on top. So [CLS] living at index 0 (vs. index 5, or anywhere else) is a convention, not a requirement — what actually matters is consistency: whatever slot it lives in, it needs to get the same positional embedding and be read from the same index every time. Contrast this with the patch positional embeddings, which do encode something real — position 3 corresponds to an actual grid location in the image.

“In inference, does only [CLS] compute a query?” — this one, I initially conflated with something I already understood from GPT: KV-caching, where during generation only the newest token computes a query, reusing cached K/V from every earlier token. It’s a natural thing to reach for, but the mechanism doesn’t transfer, and pulling the two apart clarified both:

  GPT + KV cache ViT [CLS]
Why it’s valid causal mask freezes a past token’s hidden state forever — nothing later can reach back and change it you just know one output (patches’ final layer) is never read
Applies to every layer, every generation step only the very last layer, in a single forward pass
What it saves redundant recomputation across many sequential steps one layer’s worth of compute you’d throw away anyway

There’s no autoregression happening inside a ViT — it’s one parallel forward pass over all 65 tokens, bidirectional, no cache. All 65 tokens (patches included) compute Q/K/V and attend fully at every layer, because the patches need to keep refining each other for [CLS]’s final summary to be worth anything. The only place you could legitimately skip patch computation is the last layer, since nothing downstream reads the patches’ output there — and even then, my implementation doesn’t bother, because I wanted every patch’s attention weights available at every layer for a possible future attention-map visualization.

Architecture

Image (H x W x C)
   │  split into non-overlapping patches
   ▼
Patches (N x (P*P*C))
   │  linear projection
   ▼
Patch embeddings (N x D)  + prepend [CLS] + positional embeddings
   │
   ▼
Transformer block x L   (multi-head attention + MLP, pre-norm, residual)
   │
   ▼
take [CLS] output → classification head

Math

Image x ∈ R^(H×W×C), patch size P. Reshape into N = (H/P)·(W/P) patches, each flattened to R^(P²·C):

z_0 = [ x_cls ;  x_p^1 E ;  x_p^2 E ; ... ; x_p^N E ]  +  E_pos

E ∈ R^(P²C × D)        learned projection, analog of GPT's embedding table
x_cls ∈ R^D            learned [CLS] embedding
E_pos ∈ R^((N+1) × D)  learned positional embeddings
z_0 ∈ R^((N+1) × D)    input sequence to the transformer blocks

Attention, per head, no causal mask:

Attention(Q, K, V) = softmax(QK^T / sqrt(d_head)) V

Everything downstream of z_0 — multi-head attention, residual connections, MLP — is unchanged from a GPT block.

Code walkthrough

Full implementation is in src/vision/: patch_embedding.py, positional_embedding.py, multi_head_attention.py, transformer_block.py, vit.py, train.py. Design write-up for each file is in src/vision/README.md — I won’t duplicate it here, but the one part worth calling out is multi_head_attention.py, because I wrote a first draft myself and it had four real bugs, all instructive:

  1. nn.linear instead of nn.Linear — a typo that just crashes.
  2. Missing the scaling — Q @ K.transpose(-1,-2) with no / sqrt(head_dim). This is “scaled dot-product attention” with the scaling silently dropped; without it, dot products grow with head_dim, softmax saturates, gradients vanish.
  3. softmax(dim=1) instead of dim=-1 — softmax needs to normalize over the key dimension so each query’s attention weights sum to 1; dim=1 normalizes over the heads dimension instead, which is meaningless.
  4. Incomplete head-merging logic after the attention output.

None of these broke the output shape — (B, N, D) in, (B, N, D) out, looked fine at a glance. That’s the real lesson: shape checks catch structural bugs, not numerical ones. A model can run cleanly end to end and still be computing something wrong. The fix for #4 also surfaced a small but genuinely useful PyTorch fact: .transpose() leaves a tensor non-contiguous in memory, so merging the head dimension back afterward needs .reshape() (which copies if needed) rather than .view() (which would just error).

Experiment results

Trained on CIFAR-10, embed_dim=128, depth=4, num_heads=4, patch_size=4, on an Apple Silicon GPU (mps).

Getting the data was its own small detective story. The official CIFAR-10 host (cs.toronto.edu) downloaded at ~94KB/s in this environment — 28 minutes for a 170MB file. I almost assumed the environment itself had a bandwidth cap, but a quick curl test against GitHub hit ~12MB/s from the same machine, which ruled that out. The Toronto server itself is just slow. Switching to CIFAR-10 hosted on HuggingFace (uoft-cs/cifar10) got ~40MB/s — roughly 400x faster, same official train/test split, no data-quality tradeoff.

Run 1 (10 epochs, flat LR):

epoch train_acc test_acc
1 35.7% 43.8%
5 59.7% 61.8%
10 68.7% 68.0%

Train and test tracked closely the whole way — no overfitting, but also clearly not finished improving. That’s the useful signal: when train and test accuracy are still moving together at the end of a run, the fix is almost always just “run it longer,” not “change the architecture.”

Run 2 (40 epochs, cosine LR schedule + 3-epoch warmup + label smoothing 0.1): same architecture, standard transformer-training recipe additions on top.

epoch train_acc test_acc
1 26.6% 35.0%
10 67.3% 68.3%
20 78.0% 75.5%
30 85.5% 78.3%
34 — 79.3% (best)
40 88.3% 79.0%

68% → 79%, ~11.4 minutes total. But the more interesting thing in this run is what happens after epoch ~20: train accuracy keeps climbing (78% → 88%) while test accuracy basically plateaus (75.5% → ~79%, with most of that gain arriving before epoch 30). That gap opening up is overfitting starting, in real time, in the same run that started out underfit. Underfitting and overfitting aren’t opposite ends of one dial you’re always somewhere on — they’re two different failure modes, and this run walked through both.

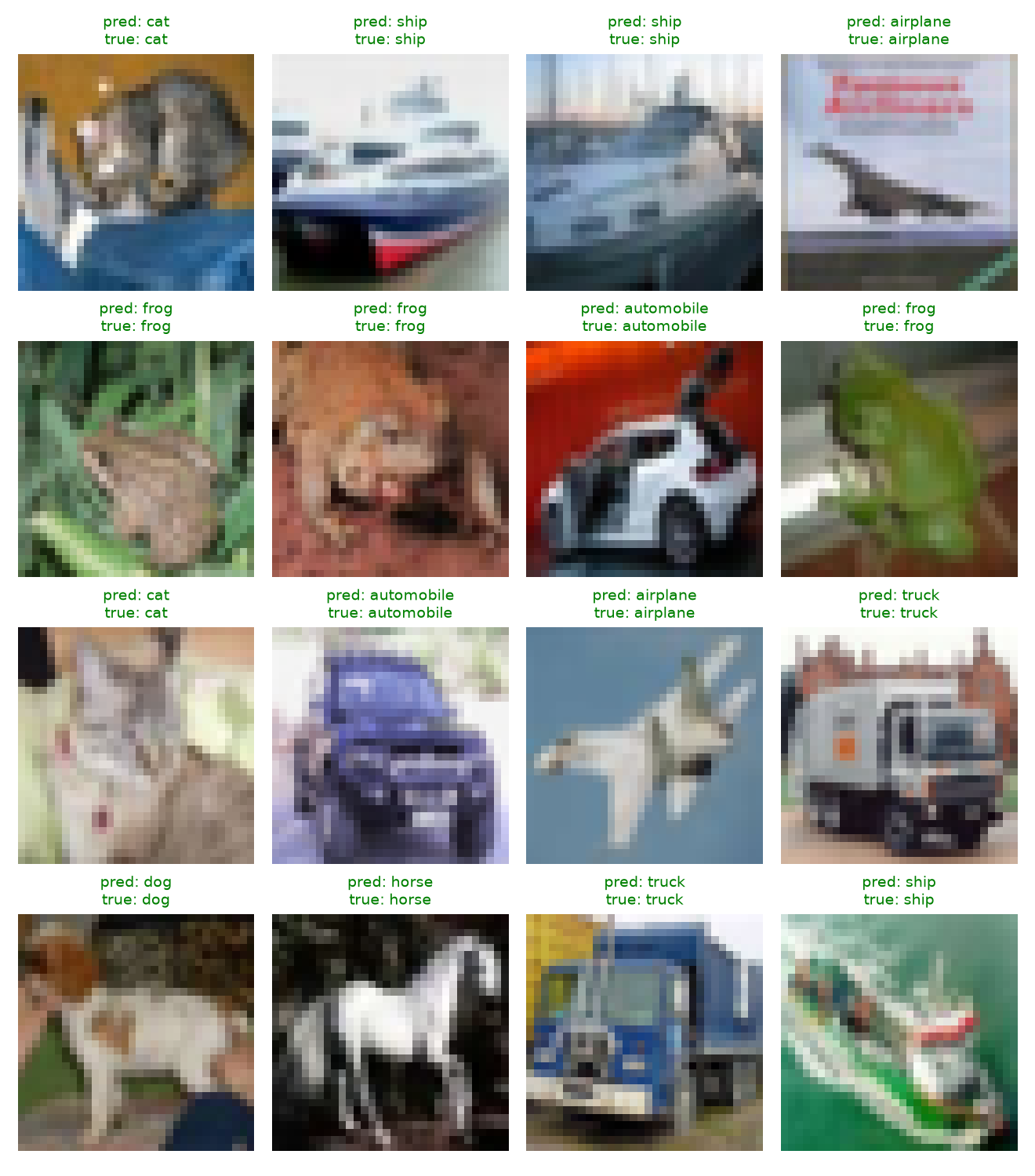

I also built an eval script as a visual sanity check beyond the accuracy number — it runs the trained model on 16 real, held-out test images and saves a labeled grid (green = correct, red = wrong):

prediction grid

Run 2’s checkpoint gets all 16/16 here, including an image that Run 1’s checkpoint got wrong — a photo of a sign with a frog printed on it, which Run 1 called “bird.” That’s a genuinely ambiguous image even for a human glancing quickly, which made it a satisfying one to watch flip to correct.

68–79% isn’t close to what a CNN gets on CIFAR-10 with similar compute — expected, since ViT lacks convolution’s built-in spatial assumptions and has to learn them from data instead, which takes more of it. That was never the point of this experiment. The point was: does the from-scratch implementation actually learn, cleanly, with no bug quietly capping it? It does.

What I learned

  • The [CLS] token stopped being confusing the moment I stopped trying to hold the linear-algebra description in my head and used an analogy instead (65 tokens, one of them starts knowing nothing and only ever holds a summary built from listening to the other 64).
  • Two sharp-feeling questions — “does [CLS]’s position actually matter?” and “is this like KV-caching?” — turned out to be genuinely good questions with precise answers, not naive ones. Chasing down why an instinct is right (or where an analogy breaks) taught me more than either the original explanation or a flat “yes/no” would have.
  • Shape-correctness is a weak test. My own first attempt at the attention layer ran, produced the right output shape, and was still wrong in three numerically meaningful ways (missing scale factor, wrong softmax axis, a typo). I’ll be adding at least a values-level sanity check, not just a shape check, going forward.
  • Don’t trust that the “official” data source is the fast one — a two-line curl bandwidth test saved what would’ve been a 28-minute wait, and pointed at a genuinely better source (HuggingFace) rather than just working around a slow one.
  • Underfitting and overfitting are different problems with different fixes, and a single training run can pass through both — the tell is simply whether train and test accuracy are still moving together or have started to diverge.

Full code, configs, and results: github.com/yashsawant22/embodied-gpt.
